Wide range sleeve ductile iron universal coupling Flexible connection dresser pipe gibault joints

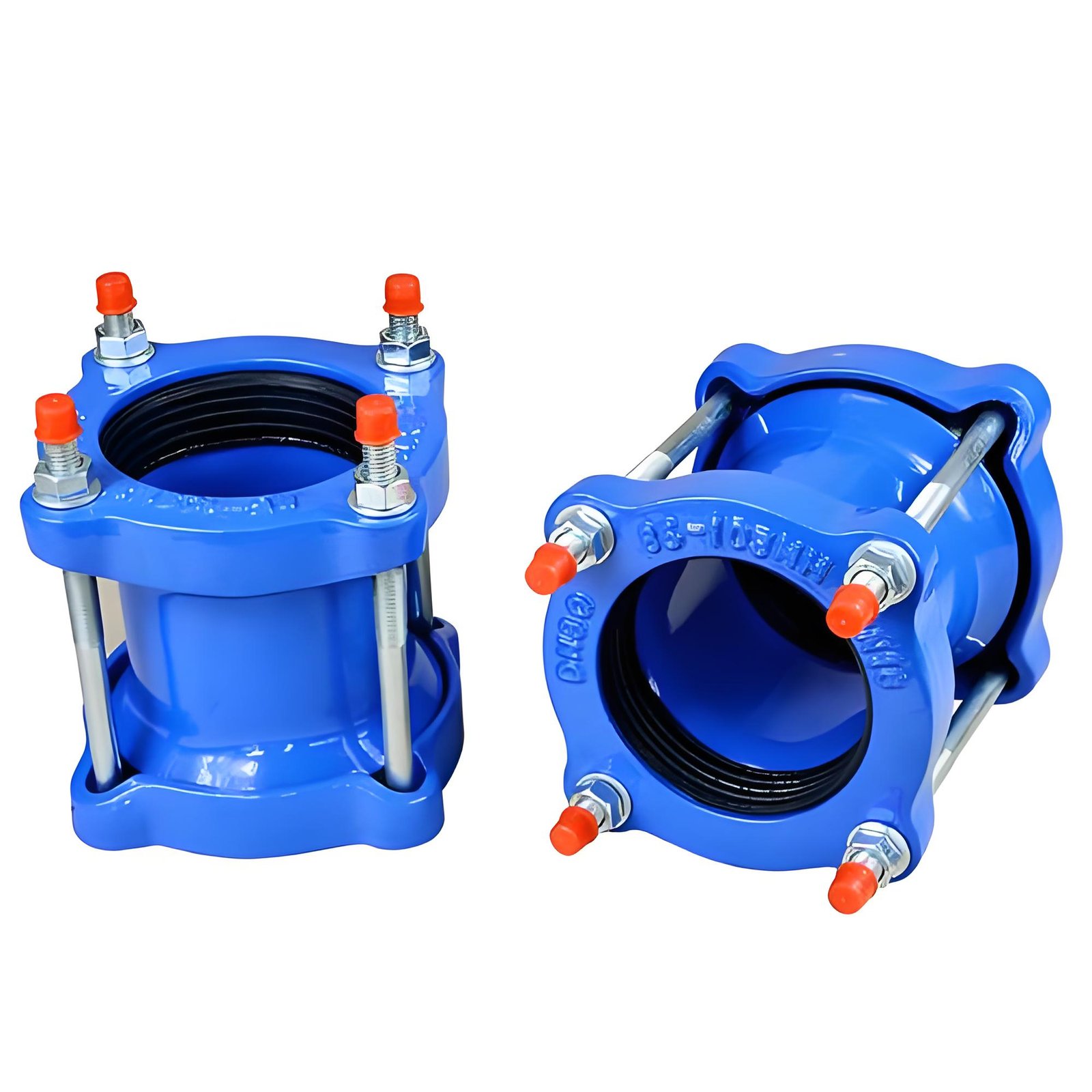

Ductile iron universal dresser coupling Dresser coupling joint is a type of mechanical coupling
Function:it is used to join two plain ends of pipes. can grips the spigot (male end) and socket (female end) of two pipes.
Advantages:
Wide range of pipe diametersThe installation process is fast and simpleNot affected by the environmentNo welding is required,
fire hazard eliminatedMaintain the continuity of the pipeline systemcan increase the hoop strength of the pipeAllowing slight misalignment,
vibration,expansion and contractionIt fits on outside wall of pipe,no internal protrusions,
will not damage the pipeline lininga length of pipe can be reomoved by disassembling the dresser coupling
Construction:One sleeve:(materials:ductile iron,carbon steel,stainless steel)
Two glands:(materials:ductile iron,carbon steel,stainless steel)
Two gaskets:also known as sealing rings(materials:Commonly used EPDM,also can NBR)
Bolts and nuts:(GD8.8,carbon steel,stainless steel,dacromet bolt)
Work pressure:PN10/PN16/PN25
Maximum temperature:-10℃~+70℃
Applicable Medium:Drinking water, neutral liquids, and sewage
Applicable pipeline materials:Cast iron pipes,ductile iron pipes,steel pipes,PVC pipes,etc We can provide ductile iron/carbon steel/stainless steel dresser coupling
