Universal Flange Adaptor.
A wide-tolerance adaptor connecting plain-end pipe to a flanged connection. Choose the configuration by the actual pipe outside diameter.
- Pipe materials listed
- Ductile iron, steel, PVC, fibre cement and others — confirm compatibility
- Working pressure
- PN10 / PN16
- Temperature range
- −10 °C to +70 °C
- Media listed
- Potable water, neutral liquids and wastewater; request applicable approvals
Confirm the final configuration, price and delivery with our team.
PRODUCT AT A GLANCE
Technical parameters
- Pipe materials listed
- Ductile iron, steel, PVC, fibre cement and others — confirm compatibility
- Working pressure
- PN10 / PN16
- Temperature range
- −10 °C to +70 °C
- Media listed
- Potable water, neutral liquids and wastewater; request applicable approvals
- Angular deflection
- ±4°, described as total angular deflection in the catalog
- Flange reference
- EN 1092-2; BS or ANSI drilling options listed
- Coating / testing references
- EN 30677 / EN 12266-1
- Seal options
- EPDM in component table; NBR and other options listed
CATALOG SPECIFICATIONS
Find your configuration
19 catalog configurations. Select a row to prepare your inquiry.
| DN | Pipe OD range (mm) | L (mm) | D (mm) | Bolt size | Qty | Inquiry |
|---|---|---|---|---|---|---|
| 50 | 59–72 | 75 | 165 | M12×130 | 2 | Select ↗ |
| 65 | 72–85 | 75 | 185 | M12×130 | 2 | Select ↗ |
| 80 | 88–103 | 76 | 185 | M12×130 | 4 | Select ↗ |
| 100 | 109–128 | 78 | 218 | M12×130 | 4 | Select ↗ |
| 125 | 132–146 | 78 | 250 | M12×130 | 4 | Select ↗ |
| 150 | 159–182 | 80 | 272 | M12×130 | 4 | Select ↗ |
| 175 | 192–210 | 85 | 312 | M12×130 | 4 | Select ↗ |
| 200 | 218–235 | 85 | 335 | M12×130 | 4 | Select ↗ |
| 250 | 272–289 | 90 | 405 | M12×130 | 6 | Select ↗ |
| 300 | 315–332 | 90 | 460 | M12×130 | 6 | Select ↗ |
| 350 | 374–391 | 110 | 510 | M16×180 | 8 | Select ↗ |
| 400 | 400–429 | 110 | 568 | M16×180 | 8 | Select ↗ |
| 400 | 418–435 | 110 | 580 | M16×180 | 8 | Select ↗ |
| 400 | 425–442 | 110 | 580 | M16×180 | 8 | Select ↗ |
| 450 | 476–493 | 115 | 640 | M16×180 | 10 | Select ↗ |
| 500 | 500–532 | 120 | 683 | M16×180 | 10 | Select ↗ |
| 500 | 527–544 | 120 | 690 | M16×180 | 10 | Select ↗ |
| 600 | 600–630 | 130 | 790 | M16×180 | 10 | Select ↗ |
| 600 | 630–647 | 130 | 820 | M16×180 | 10 | Select ↗ |
Showing 19 configurations
No matching row. Clear your search or select “Custom requirement” in the inquiry form.

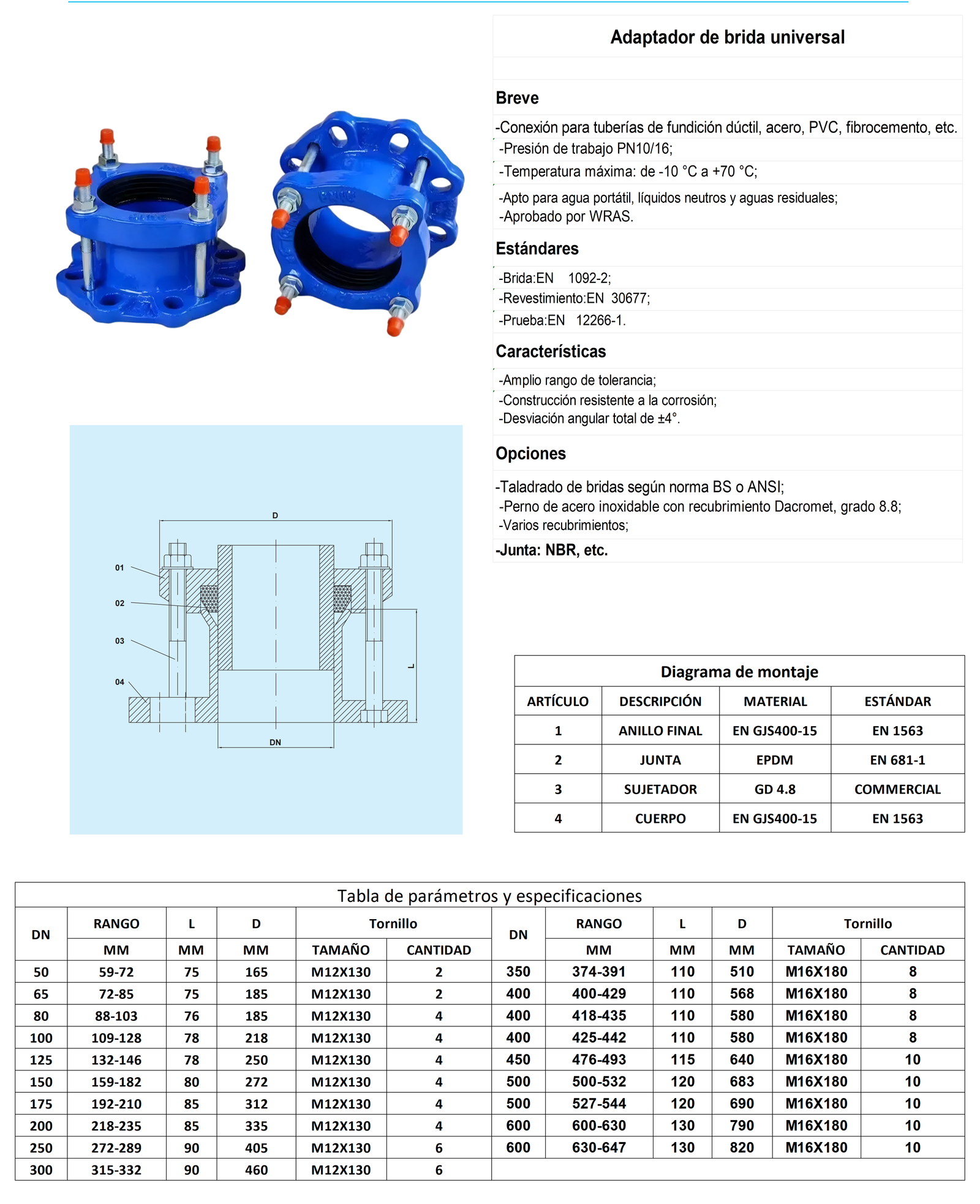

Use the drawing and notes below to interpret the catalog symbols. On mobile, swipe the table sideways.
Drawing reproduced from the supplied product catalog.
Request a confirmed drawing ↗CONFIRM YOUR CONFIGURATION
Details for your project
Selection & catalog scope
Select by measured pipe outside diameter, not nominal diameter alone. Repeated DN rows are separate configurations.
Configuration notes
The catalog mentions WRAS approval. Request the applicable certificate and product scope before specifying potable-water use.
Technical clarification
The options text mentions stainless steel / Dacromet / grade 8.8 fasteners, while the component table lists GD 4.8. Confirm the exact fastener material, grade and coating.
Materials & service
The catalog lists corrosion-resistant construction and various coating options. Confirm the coating system and service environment.
Additional reference
Catalog standard references and material options require confirmation for the selected configuration.
Component materials
| No. | Component | Material | Reference |
|---|---|---|---|
| 1 | End ring | EN GJS400-15 | EN 1563 |
| 2 | Gasket | EPDM | EN 681-1 |
| 3 | Fastener | GD 4.8 | Commercial |
| 4 | Body | EN GJS400-15 | EN 1563 |
