FOR YOUR PIPELINE PROJECT
Lever-Operated Butterfly Valve.
A lever-operated butterfly valve for pipeline projects. Review the catalog dimensions and tell us your pressure, connection and medium requirements.
- Stated product range
- DN40–DN300
- Dimension table coverage
- DN50–DN600; availability above DN300 requires confirmation
- Pressure
- ≤1.6 MPa
- Temperature
- −20° to 120°; temperature unit not explicitly stated
Confirm the final configuration, price and delivery with our team.
PRODUCT AT A GLANCE
Technical parameters
- Stated product range
- DN40–DN300
- Dimension table coverage
- DN50–DN600; availability above DN300 requires confirmation
- Pressure
- ≤1.6 MPa
- Temperature
- −20° to 120°; temperature unit not explicitly stated
- Media listed
- Water, air, powder, and mildly corrosive liquids and gases; confirm compatibility
- Connection designations
- PN10 / PN16, 150LB, 5K / 10K
- Applications listed
- Water plants, construction, power generation, shipbuilding, water treatment, chemical and municipal projects
- Table model reference
- LTD71/371/671/971X-1.0/1.6
CATALOG SPECIFICATIONS
Find your configuration
22 catalog configurations. Select a row to prepare your inquiry.
| DN | Size (in) | Row variant | A | B | C | D | L | H | D1 | n-Φ | K | E | n1-41* | φ2 | G | Inquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 2 | Single | 161 | 80 | 42 | 52.9 | 32 | 88.39 | 125 | 4-M16 | 77 | 57.15 | 4-6.7 | 12.6 | 118 | Select ↗ |
| 65 | 2.5 | Single | 175 | 89 | 44.7 | 64.5 | 32 | 102.54 | 145 | 4-M16 | 77 | 57.15 | 4-6.7 | 12.6 | 137 | Select ↗ |
| 80 | 3 | Single | 181 | 95 | 45.2 | 78.8 | 32 | 61.23 | 160 | 8-M16 | 77 | 57.15 | 4-6.7 | 12.6 | 189 | Select ↗ |
| 100 | 4 | Single | 200 | 114 | 52.1 | 104 | 32 | 68.88 | 180 | 8-M16 | 92 | 69.85 | 4-10.3 | 15.77 | 206 | Select ↗ |
| 125 | 5 | Single | 213 | 127 | 54.4 | 123.3 | 32 | 80.36 | 210 | 8-M16 | 92 | 69.85 | 4-10.3 | 18.92 | 238 | Select ↗ |
| 150 | 6 | Single | 226 | 139 | 55.8 | 155.6 | 32 | 91.84 | 240 | 8-M20 | 92 | 69.85 | 4-10.3 | 18.92 | 266 | Select ↗ |
| 200 | 8 | A | 260 | 175 | 60.6 | 202.5 | 45 | 112.89 | 295 | 8-M20 | 115 | 88.9 | 4-14.3 | 22.1 | 329 | Select ↗ |
| 200 | 8 | B | 260 | 175 | 60.6 | 202.5 | 45 | 76.35 | 295 | 12-M24 | 115 | 88.9 | 4-14.3 | 22.1 | 329 | Select ↗ |
| 250 | 10 | A | 292 | 203 | 65.6 | 250.5 | 45 | 90.59 | 350 | 12-M20 | 115 | 88.9 | 4-14.3 | 28.45 | 393 | Select ↗ |
| 250 | 10 | B | 292 | 203 | 65.6 | 250.5 | 45 | 91.88 | 355 | 12-M24 | 115 | 88.9 | 4-14.3 | 28.45 | 393 | Select ↗ |
| 300 | 12 | A | 337 | 242 | 76.9 | 301.6 | 45 | 103.52 | 400 | 12-M20 | 140 | 107.95 | 4-14.3 | 31.6 | 462 | Select ↗ |
| 300 | 12 | B | 337 | 242 | 76.9 | 301.6 | 45 | 106.12 | 410 | 12-M24 | 140 | 107.95 | 4-14.3 | 31.6 | 462 | Select ↗ |
| 350 | 14 | A | 368 | 267 | 76.5 | 333.3 | 45 | 89.74 | 460 | 16-M20 | 140 | 107.95 | 4-14.3 | 31.6 | 515 | Select ↗ |
| 350 | 14 | B | 368 | 267 | 76.5 | 333.3 | 45 | 91.69 | 470 | 16-M24 | 140 | 107.95 | 4-14.3 | 31.6 | 515 | Select ↗ |
| 400 | 16 | A | 400 | 309 | 86.5 | 389.6 | 51.2 | 100.48 | 515 | 16-M24 | 197 | 158.75 | 4-20.6 | 33.15 | 579 | Select ↗ |
| 400 | 16 | B | 400 | 309 | 86.5 | 389.6 | 72 | 102.42 | 525 | 16-M27 | 197 | 158.75 | 4-20.6 | 33.15 | 579 | Select ↗ |
| 450 | 18 | A | 422 | 328 | 105.6 | 440.51 | 51.2 | 88.38 | 565 | 20-M24 | 197 | 158.75 | 4-20.6 | 38 | 627 | Select ↗ |
| 450 | 18 | B | 422 | 328 | 105.6 | 440.51 | 72 | 91.51 | 585 | 20-M27 | 197 | 158.75 | 4-20.6 | 38 | 627 | Select ↗ |
| 500 | 20 | A | 480 | 361 | 131.8 | 491.6 | 64.2 | 96.99 | 620 | 20-M24 | 197 | 158.75 | 4-20.6 | 41.15 | 696 | Select ↗ |
| 500 | 20 | B | 480 | 361 | 131.8 | 491.6 | 82 | 101.68 | 650 | 20-M30 | 197 | 158.75 | 4-20.6 | 41.15 | 696 | Select ↗ |
| 600 | 24 | A | 562 | 459 | 152 | 592.5 | 70.2 | 113.42 | 725 | 20-M27 | 276 | 215.9 | 4-22.2 | 50.65 | 821 | Select ↗ |
| 600 | 24 | B | 562 | 459 | 152 | 592.5 | 82 | 120.46 | 770 | 20-M33 | 276 | 215.9 | 4-22.2 | 50.65 | 821 | Select ↗ |
Showing 22 configurations
No matching row. Clear your search or select “Custom requirement” in the inquiry form.
Use the drawing and notes below to interpret the catalog symbols. On mobile, swipe the table sideways.

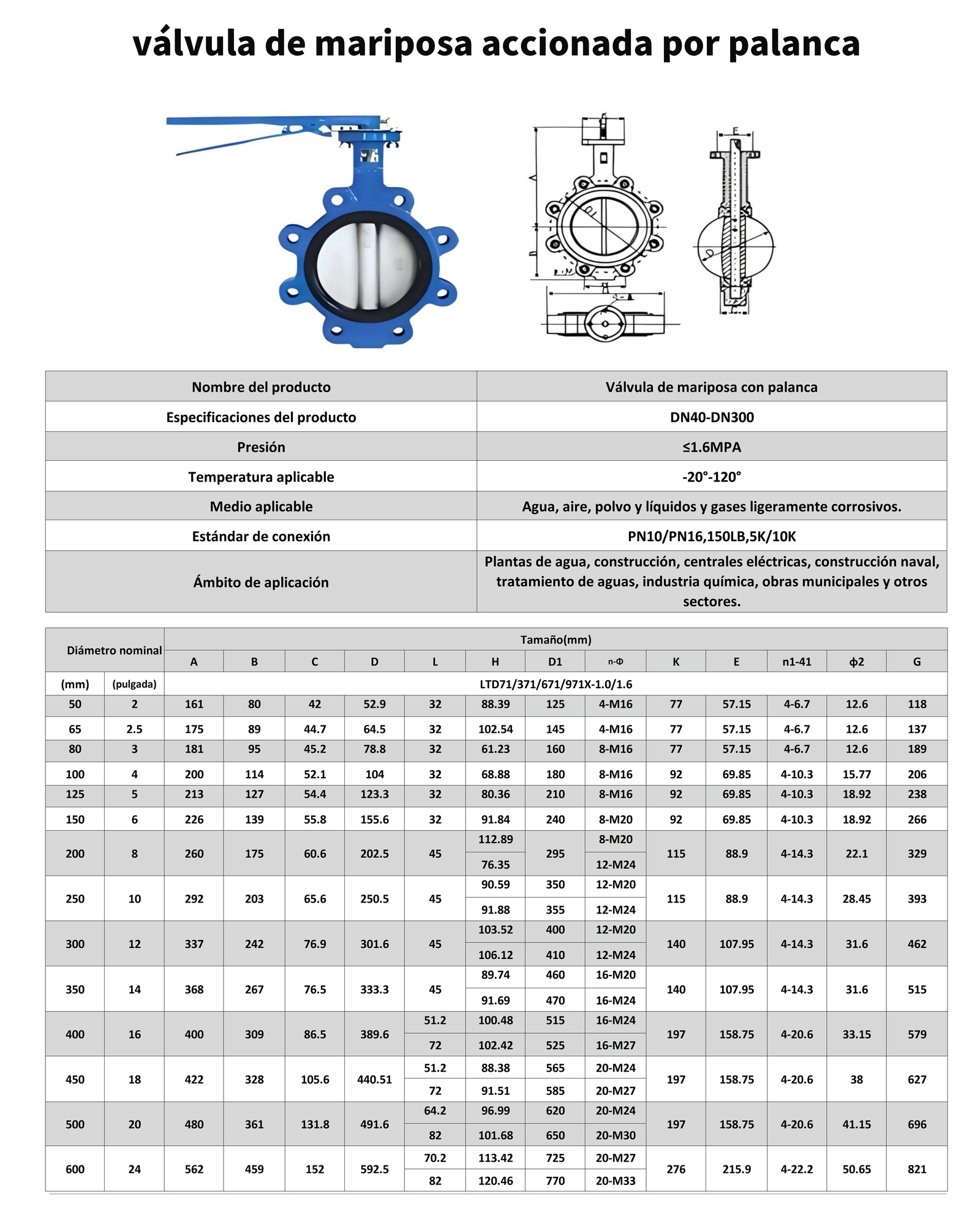

Drawing reproduced from the supplied product catalog.
Request a confirmed drawing ↗CONFIRM YOUR CONFIGURATION
Details for your project
Selection & catalog scope
The general product range is DN40–DN300, while the supplied dimension table extends to DN600 and has no DN40 row. Confirm model and operator availability for sizes outside the stated range.
Configuration notes
A and B identify the first and second source rows for a DN. They are not assigned to PN10, PN16 or any other pressure class because the source does not label the pairing.
Technical clarification
Dimensions are in mm as indicated in the source. The ambiguous column “n1-41” is kept as printed and requires confirmation.
Materials & service
The temperature range is printed without C/F. Confirm its unit, material selection and applicable service conditions.
Additional reference
Body, disc, stem and seal materials are not specified on this catalog page. Provide your required materials with the inquiry.
START WITH YOUR SPECIFICATION
Request your project quote.
Select the catalog configuration and tell us your required quantity and service conditions.
DN50 / catalog row
- DN
- 50
- Size (in)
- 2
- Row variant
- Single
- A
- 161
- B
- 80
- C
- 42
- D
- 52.9
- L
- 32
- H
- 88.39
- D1
- 125
- n-Φ
- 4-M16
- K
- 77
- E
- 57.15
- n1-41*
- 4-6.7
- φ2
- 12.6
- G
- 118
